Goliathtech piles
Meet all of the standards
 for Canadian construction materials

Make sure to choose screw piles that meet each and every standard!

As of May 2018, the Canadian Construction Materials Centre (CCMC) has made changes to the National Building Code of Canada regarding the compliance requirements for helical piles and related accessories.

Caution

In the event of non-compliance, your project may be considered unsafe or illegal by your municipality, which could result in demolition. When it’s time to sell your property, this is considered to be a HIDDEN DEFECT.

ARE YOU UNSURE ABOUT YOUR PROJECT’S COMPLIANCE? Contact our compliance squad for a no-obligation consultation.

YOU NEED A 100% COMPLIANT INSTALLATION.

YOU NEED GOLIATHTECH SCREW PILES

YOU NEED THE BEST SCREW PILES ON THE MARKET!

Conformity squad
checkbox

Hot-dip galvanization

Where conditions (soil and environmental) are determined to be corrosive to steel, protection of the steel shall be provided. The determination of the presence of corrosive conditions and the specification of the corrosion protection shall be carried out by a registered professional engineer licensed to practice under the appropriate provincial or territorial legislation”. If the determination of the presence of corrosive conditions is not completed before installation, the product, including all its accessories, is required to be hot-dipped galvanized, meeting the requirements of CAN/CSA-G164 (ASTM A123/A123M-17) with a minimum thickness of 610 g/m2 , or another method that provides an equivalent level of protection and abrasion resistance deemed acceptable by CCMC.

In practice, this means…

  • Pile heads must be galvanized
  • Helices must be welded before they are galvanized
  • All nuts and bolts must be galvanized
Learn more
Pieu galvanisé
Caution

CAUTION !

Some screw piles are plated so they can be sold at a reduced price and mislead the consumer regarding their compliance. They do not conform to the Canadian Construction Materials Centre’s (CCMC) new standards.

Certificate of compliance for installation and admissible loads

A new CCMC update was also put in motion. CCMC certifications for helical piles now require that a licensed professional engineer establishes the number of screw piles and spacing needed to support different loads. These weights must be calculated by the engineer and validated with a seal to obtain a certificate of compliance.

Learn more
CCMC
Caution

CAUTION !
Make sure to obtain a certificate that attests to the compliance of your project, as well as your screw piles’ admissible loads, before construction begins. A stamped technical drawing is not considered to be a certificate, and therefore does not ensure compliance.

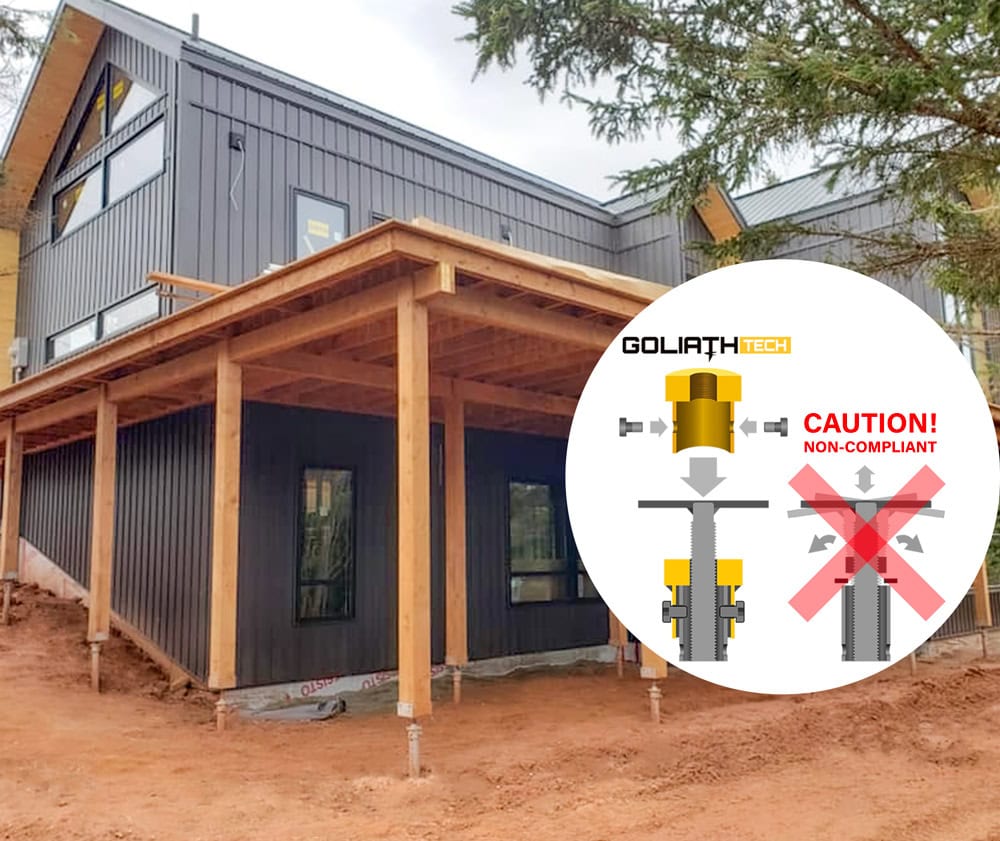

Uplift resistance requirements

When it comes to construction and renovations, a growing number of municipalities are demanding that projects using helical piles be subject to uplift resistance requirements. Inquire about further information with your municipality.

View the requirements

What types of installations legally require uplift resistance compliance?

  • Structure erected more than 60cm (24 in) off the ground
  • Structure attached to a house
  • Structure with a roof
  • Structure with a surface greater than 55m2
  • Structure with more than one level
  • Structure taller than 4.3m (15 ft)
Complies with Canadian standards
Caution

CAUTION !
Each frame also needs to be anchored to the foundation, unless a structural analysis regarding wind and seismic pressures shows that anchoring is unnecessary.
